Description

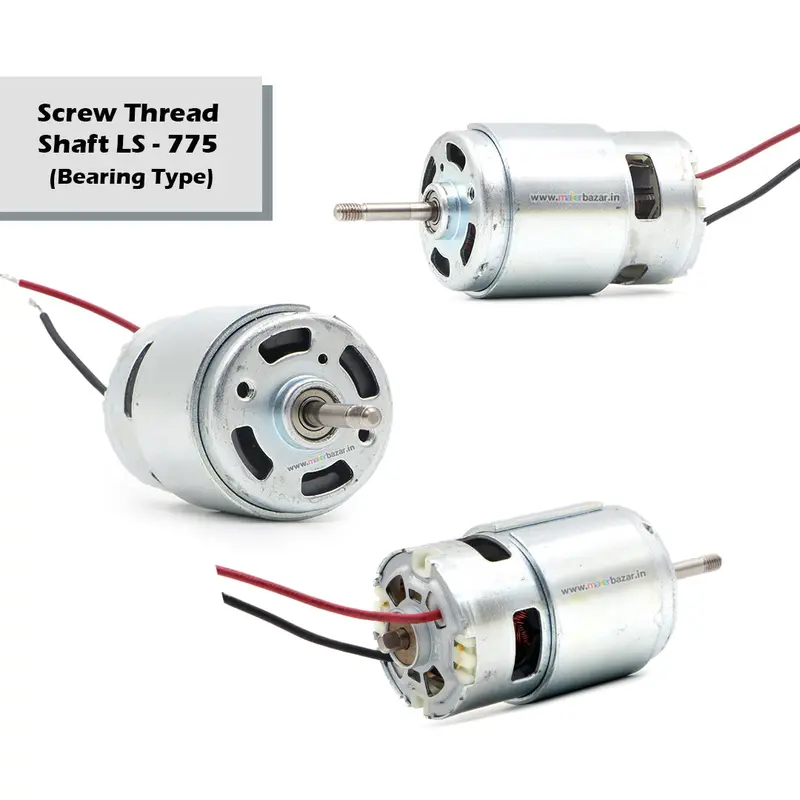

12 Volt DC Motor RS 775 for DIY

• Operating Voltage: 12V(Recommended Voltage is 12v, Although the motor can run on 24v but we don’t recommend it using it on 24V)
• No-load Current: 0.6A
• Maximum Current: 2A
• No Load Speed RPM @12V: Approx ~5000/6000 RPM
• No Load Speed RPM @24V: Approx ~11000/12000 RPM
• Mounting Screw Hole Diameter: ~4 mm
• Distance between Screw Holes: ~33 mm
• Diameter of the Motor: 41mm(Without metal clip)
• Length of the Motor (Body): 67mm
• Length of shaft: ~16-20 mm(Veries with Every Lot but usually lies in this bracket)
• Motor Shaft Diameter: 5mm
• Main Color: Silver Tone

Note: This is a generic DIY Motor, finishing, weight and size may vary in each stock. Product Images are shown for illustrative purposes only and may differ from the actual products. We suggest you buy a few quantities before going for bulk or contact customer support for current stock images.

Note:- There is no surety of the presence of an inbuilt fan inside the motor body as it varies with every new stock and  we ship it randomly according to availability.
