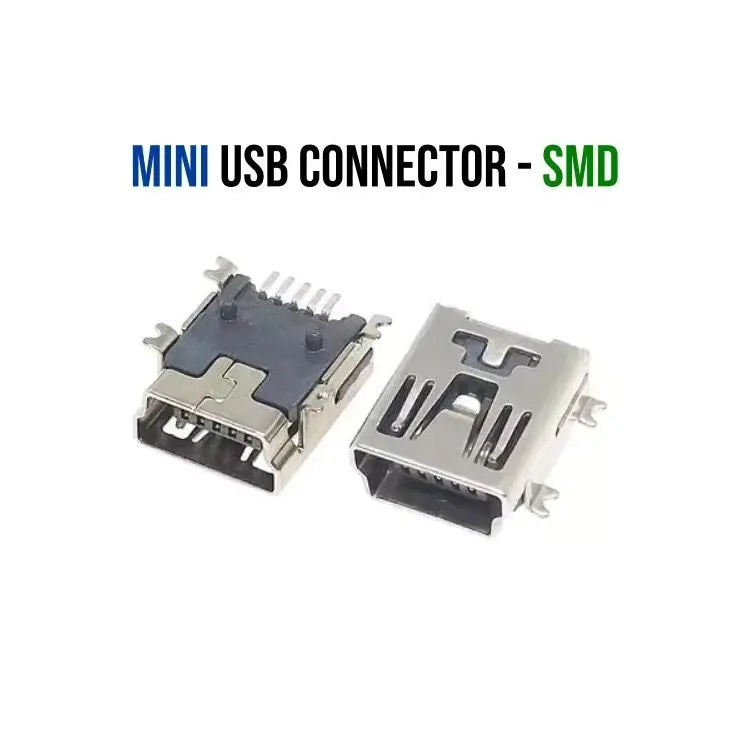

Mini USB-B Female Connector (5-Pin) – PCB Mount USB Interface
The Mini USB-B Female 5-Pin Connector is a compact and durable interface commonly used for small electronic devices, embedded systems, development boards, and DIY electronics projects. Designed for reliable power and data transmission, this connector mounts directly onto a PCB and is ideal for replacing worn-out USB ports or adding a USB interface to custom circuits.
With robust construction and secure mechanical retention, it ensures a stable connection and long-term durability even in frequent-use applications. Suitable for microcontroller boards, battery chargers, handheld devices, and communication modules.
Key Features
-
5-Pin Mini USB-B Female socket
-
Compact & durable design for long life
-
Supports both power & data transmission
-
Compatible with common USB standards
-
Ideal for DIY electronics, prototyping, and repairs
-
PCB-mount design with solid solder pads
-
Used in many small devices like MP3 players, controllers, and chargers
Applications
-
Microcontroller boards (Arduino variants, STM32, ESP boards)
-
DIY power banks & chargers
-
Portable handheld electronics
-
Data communication devices
-
PCB-based USB interfaces
-
Repairing damaged USB ports
-
Robotics & embedded projects
Specifications
| Parameter | Details |
|---|---|
| Type | Mini USB-B Female |
| Pins | 5-Pin |
| Mounting Style | PCB Through-hole/SMD (based on variant) |
| Function | Data + Power Interface |
| Current Rating | ~1A (typical) |
| Material | High-quality metal shell + plastic insulator |
| Compatibility | USB 1.1 / USB 2.0 |
