XBee S2C Zigbee Module – IEEE 802.15.4 Wireless Communication Transceiver

Description

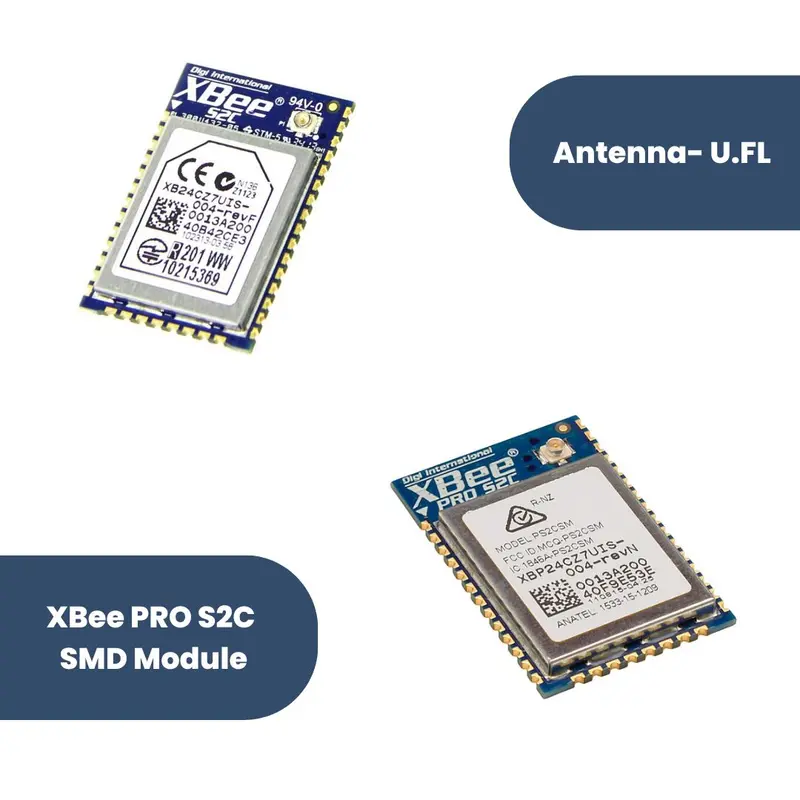

XBee S2C RF Module for Wireless 802.15.4| U.FL| Pro Antenna for Communication and IoT Applications

• Transmission Frequency: 2.4GHz to 2.5GHz
• Number of Channels: 16 Direct Sequence Channels
• Featured with UART (250 Kb/s maximum) and SPI (5 Mb/s maximum) interface
• Featured with software adjustable transmitting power
• Indoor/Urban Range: 200ft
• Outdoor RF line-of-sight Range: up to 4000ft
• Transmit Power Output: 6.3mW (8dBm) in Boost mode,2mW (3dBm) in Normal mode
• RF Data Rate: 250,000 bps
• Receiver Sensitivity: -102dBm in Boost mode, -100dBm in Normal mode
• Supply Voltage Range: +2.1V to +3.6V
• Operating Current: 33mA (at3.3V, for Normal mode) , 45mA (at 3.3V,for Boost mode)
• Idle Current: 9mA
• Maximum output current on all pins together: 40mA
• Power-down Current: <1uA @25C
• ESD protection: 3000V

Applications

• Industrial application control
• Smart energy
• Medium range wireless communication
